Viewing fault events

If there are any faults in the system, the FAULTS tab turns yellow, and the total number of faults is displayed. If there are no active alarms, the FAULTS tab is automatically selected when a new fault occurs.

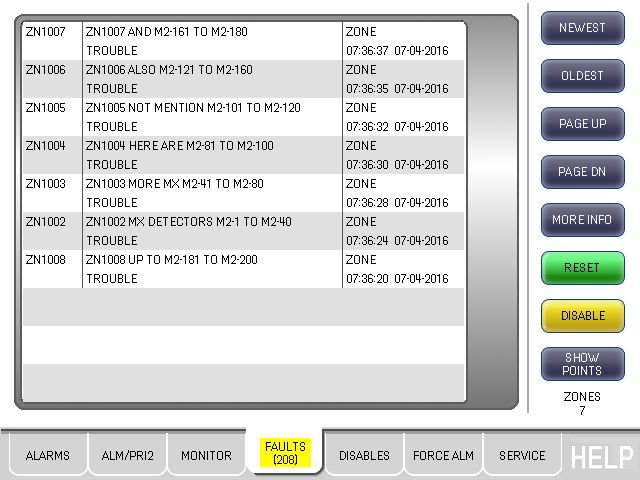

Figure 1. Faults tab

To view a fault:

1. Tap the FAULTS tab to display the list of current faults with the most recent fault at the top of the list.
2. Tap NEWEST to show the most recent fault at the top of the list.
3. Tap OLDEST to show the oldest fault at the bottom of the list.
4. Tap PAGE UP or PAGE DOWN to scroll through the list one page at a time.
5. Select a specific fault by tapping it. The selected item turns pink. Only one fault can be selected at a time.
6. Tap MORE INFO to view more information about the fault.
