Using the control panel

Use the colour touchscreen for most display and control actions. The touchscreen requires a slight pressure to activate it. It can be operated while wearing gloves or other finger covering.

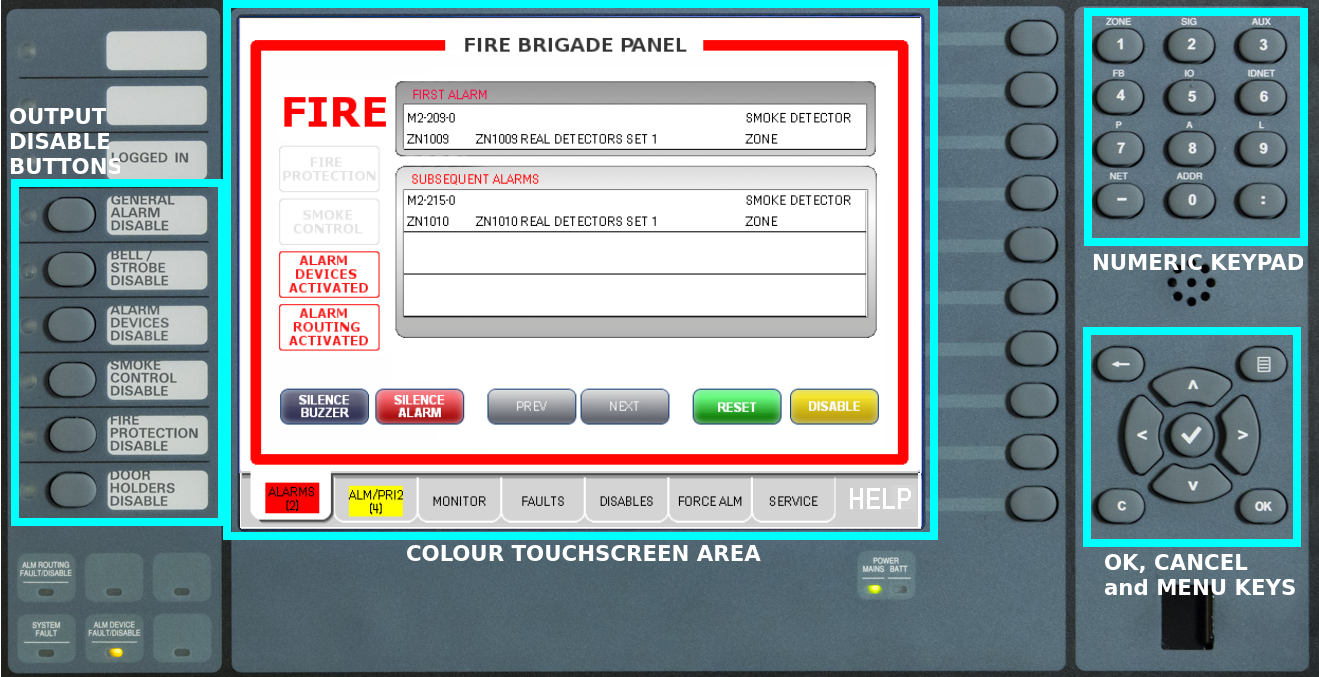

The 4100ESi user interface consists of three sections, as shown below:

  • The colour touchscreen, where most information is displayed and controls are operated.
  • The output disable buttons, found to the left of the colour touchscreen.
  • The numeric keys and OK/Cancel/Menu keys, found to the right of the touchscreen.
Figure 1. 4100ESi user interface
